From the Bench and Field

Metrology Repair Work

Photos of instruments, heads and control systems that DAO has serviced. These show the type of equipment we work on; the scope of a new repair depends on the instrument's condition.

Stylus Profilers

KLA-Tencor P11 head and headboard

Open P-series assemblies show the stylus head and headboard areas involved in component-level service. See P11 repair support →

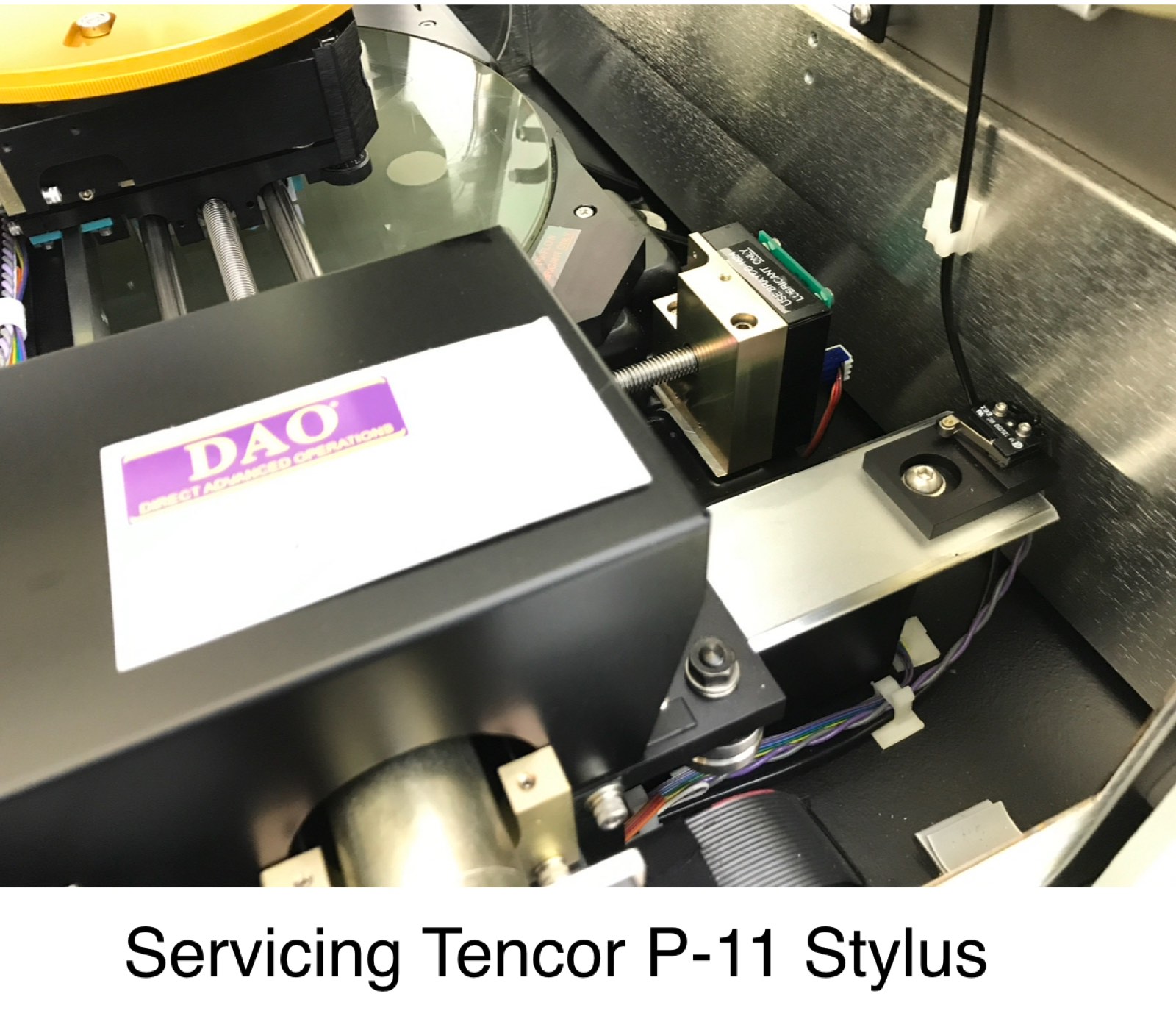

KLA-Tencor P11 stylus assembly opened for service
P11 stylus assembly.

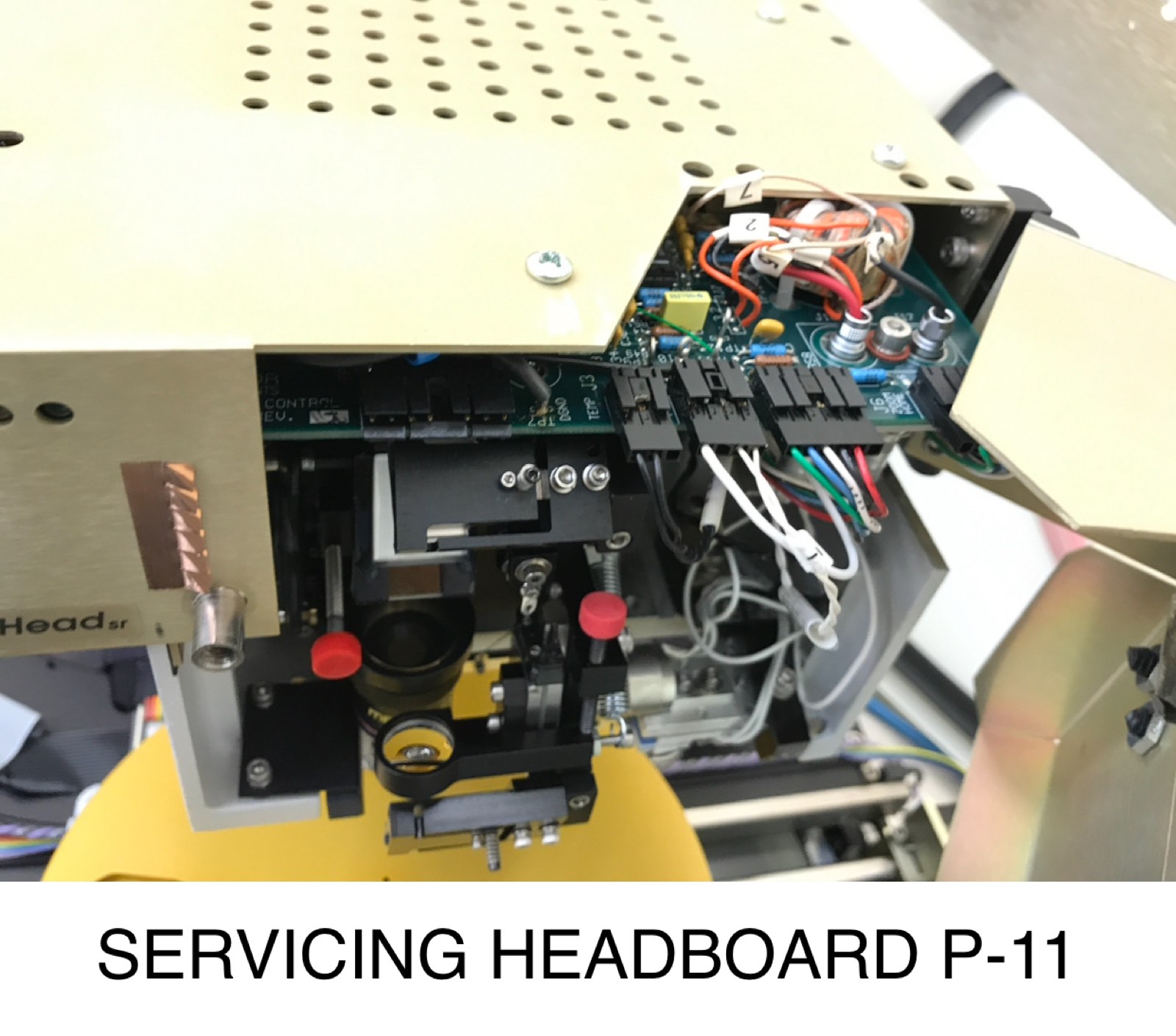

KLA-Tencor P11 headboard assembly exposed for service
P11 headboard assembly.
Surface Inspection

KLA-Candela CS10 system

Service and testing views of a Candela optical surface inspection system. See Candela service support →

KLA-Candela controller cabinet opened during on-site service
Controller cabinet during on-site service.

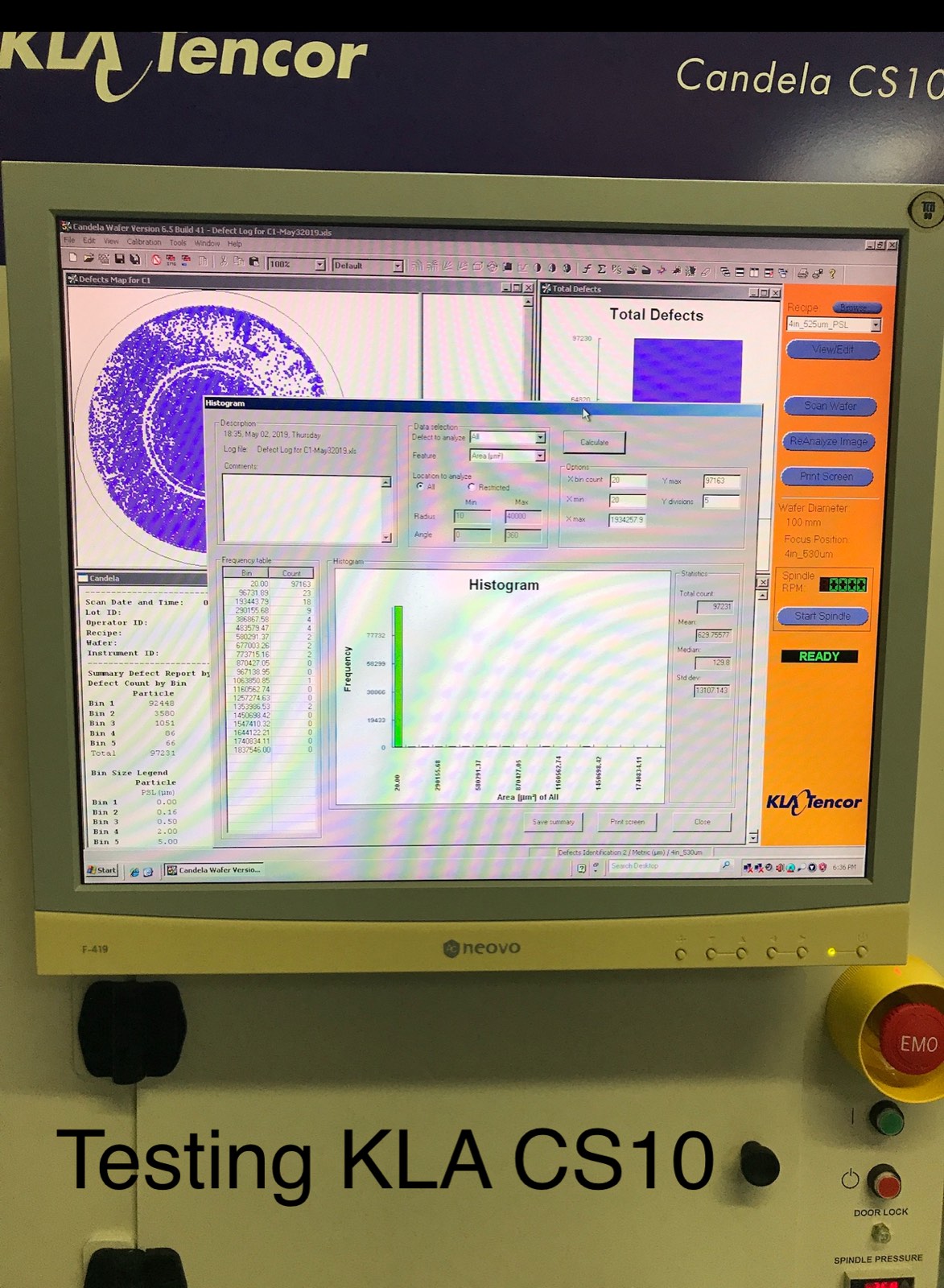

KLA-Candela CS10 testing screen
CS10 system testing.
Optical Profilers

Veeco / Wyko NT8000

An NT8000 optical profiler during on-site service. DAO also works on other supported Veeco and Wyko NT-series instruments. See Veeco / Wyko repair support →

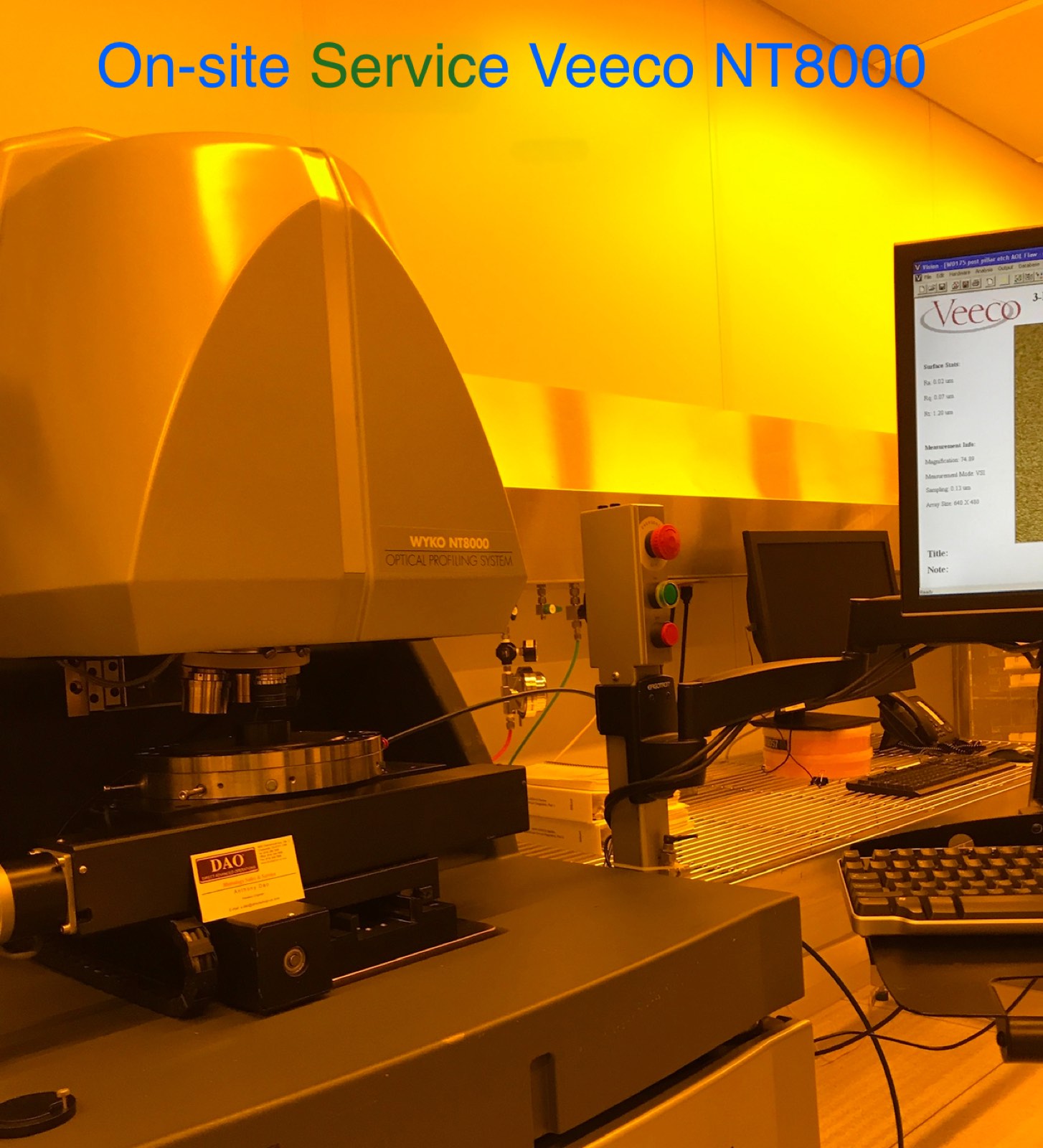

Veeco Wyko NT8000 optical profiler during on-site service
NT8000 during on-site service.

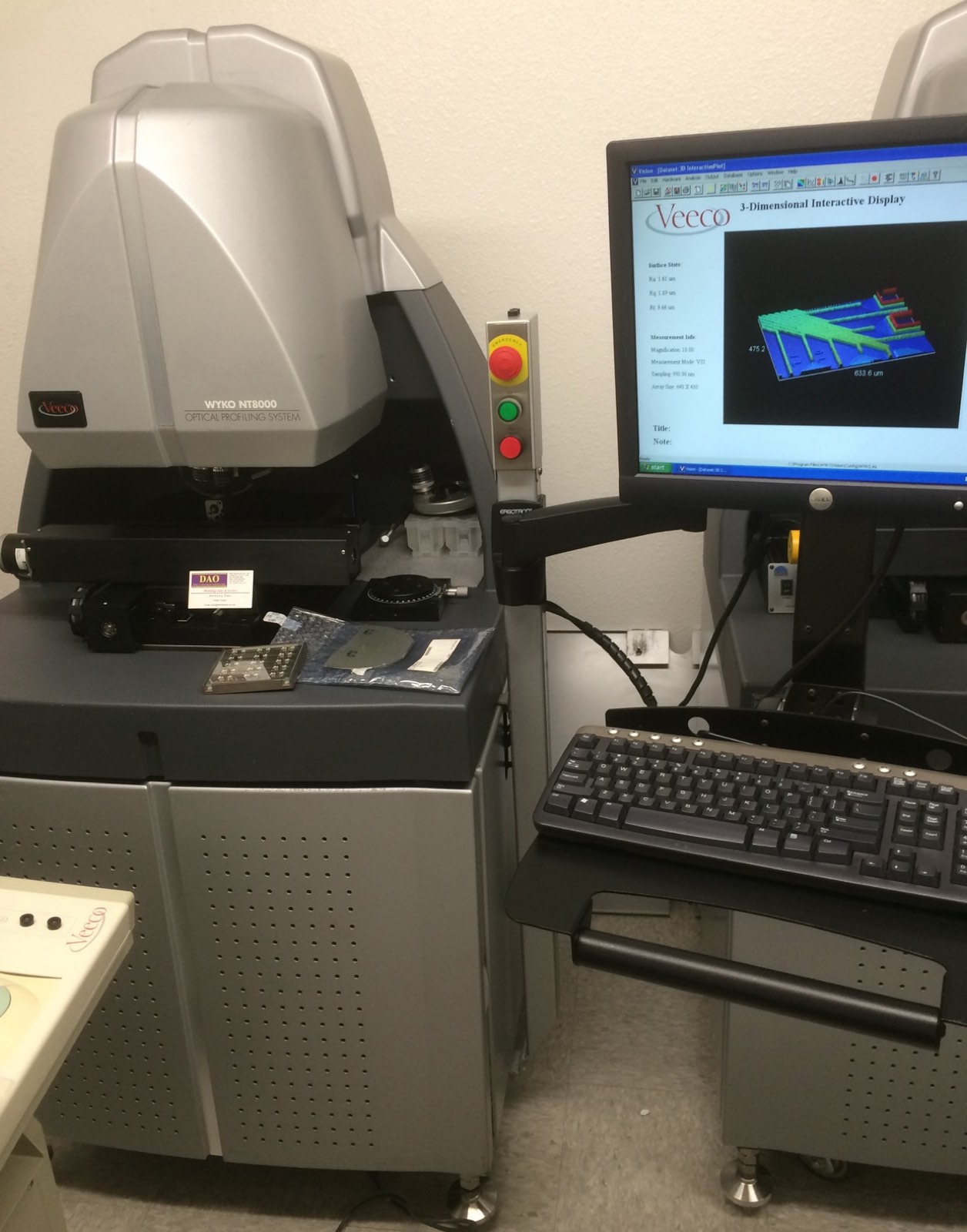

Wyko NT8000 profiler with surface measurement displayed on the control computer
NT8000 with its control workstation and measurement display.
